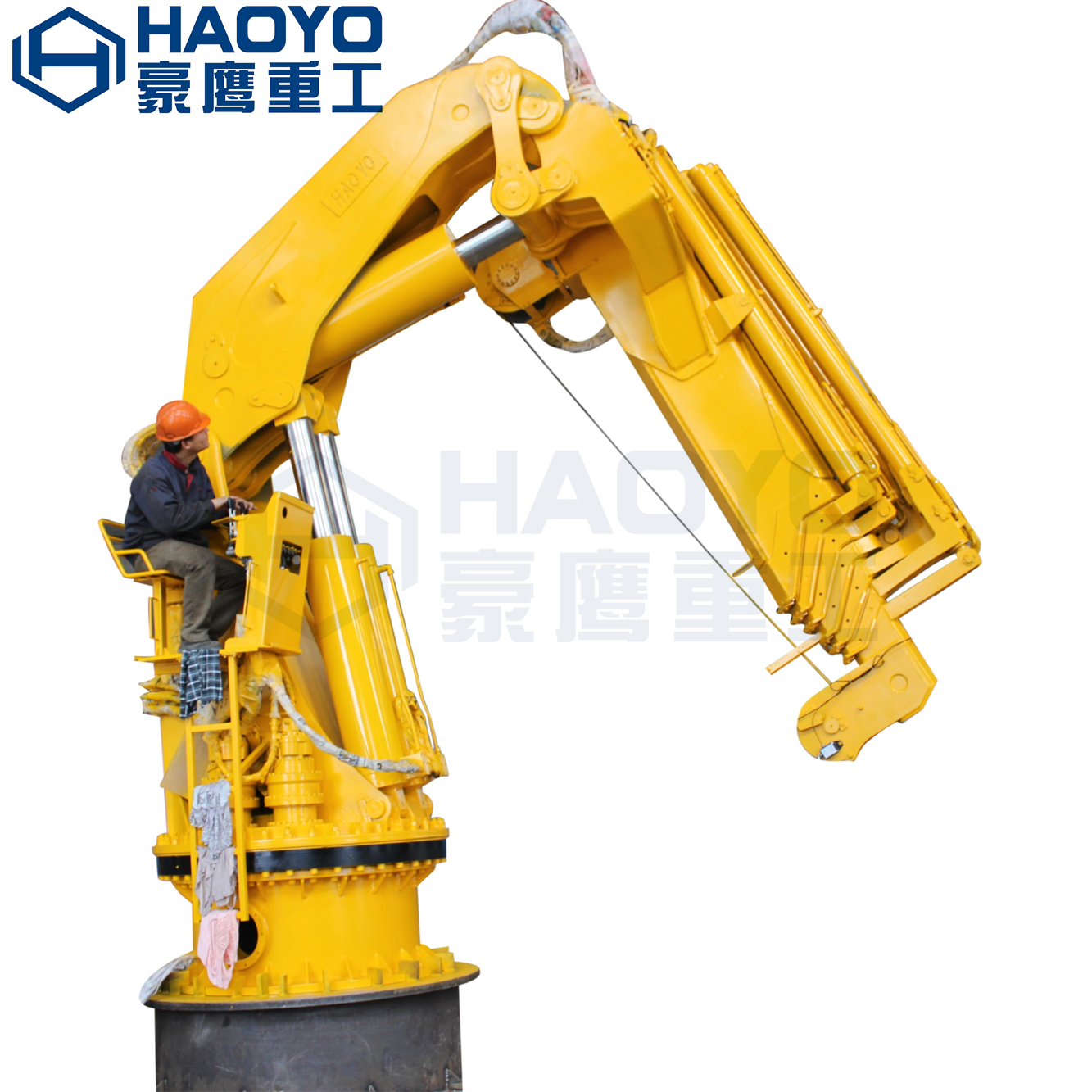

    1t@19m Hydraulic Telescopic Knuckle Folding Boom Marine Ship Deck Crane

    Ask Lasest Price
    Brand Name : HAOYO
    Model Number : 1T@19M
    Certification : BV,CCS,ABS,NK,LR
    Price : USD130000/set
    Payment Terms : L/C, T/T
    Supply Ability : 50set per year
    Delivery Time : 120days
    • Product Details
    • Company Profile

    1t@19m Hydraulic Telescopic Knuckle Folding Boom Marine Ship Deck Crane

    1t@19m Hydraulic Telescopic Knuckle Folding Boom Marine Ship Deck Crane

    Telescopic knuckle folding boom marine ship deck crane are suitable when the
    deck space is limited.Telescoping Boom hydraulic marine is designed for general
    cargo handling and service onboard ships and offshore units.The crane is most
    suitable when the amount of space on deck is ample. These cranes offer a cost
    -effective alternative to fixed booms. The crane is fixed where the lift is mostly
    done by the winch. Cannot be hydraulically extended and retracted and have no
    knuckle function.

    With various standard components and extra options, the crane is used as a multi

    -functional tool. Crane Applications: service cranes, cargo handling cranes, fishing
    and fishing cranes



    Drawing(1t@19m Hydraulic Telescopic Knuckle Folding Boom Marine Ship Deck Crane)



    MODEL

    MODELOutreach
    (m)
    Safety Load(kN)Lifting Moment(kNm)Total Moment (r/min)Pedestal Diameter (mm)Dead Weight (t)
    ECK 1508.0-12.02.1-1.1132-1682418852.8-3.2
    ECK 25010.0-14.02.9-1.8242-2903818853.7-4.3
    ECK 35012.0-16.03.6-2.3370-43060310955.3-6.3
    ECK 55014.0-18.04.7-3.2573-66098013257.8-9.2
    ECK 75014.0-18.06.1-4.2749-8551375149011.5-12.8
    ECK115016.0-20.07.3-5.21040-11601765149012.7-14.0
    ECK145016.0-20.09.0-6.41268-14402555177019.2-23.0
    ECK 22027.530,022004000180025.0
    ECK 30030.030.030005000206527.5
    ECK 40032.030.040006300205030.0
    ECK 50035.035.050008000224035.0
    ECK 80037.050.0800011500227155.0
    ECK100040.060.01000014400253670.0
    ECK120043.080.012000180002550100.0
    ECK160045.0100.016000340003166150.0
    ECK200050.0125.020000440003987200.0
    ECK250050.0150.025000500004000220.0
    ECK300050.0200.030000600004500275.0
























    Production Flow

    Certifications


    Packing & Delivery

    Shipping details
    ♦ check all the items and packaged well before loading.
    ♦ You can check loading or send picture to you.
    ♦ After shipping make documents for you,like B/L,packing list,voice according
    to your requirements.
