Specifications Knuckle Boom Cargo Hose Industrial Crane Supplier

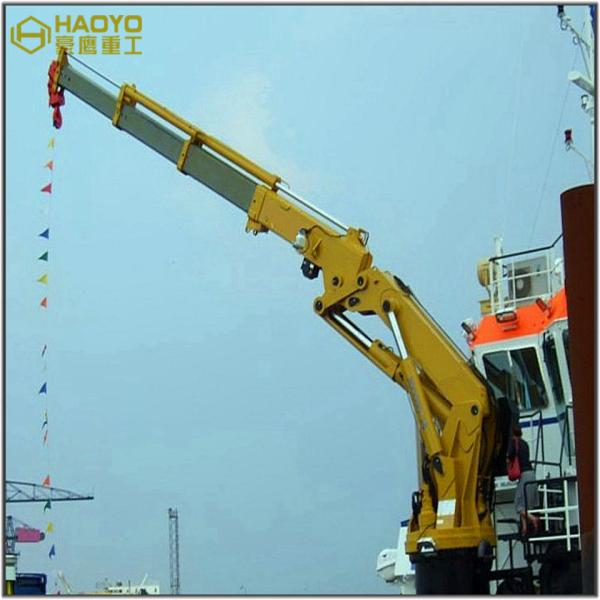

These knuckle boom cranes can be found on vessels with a big deck
area and
are also used on fixed platforms. The costs compared with knuckle booms
with
hydraulic extension are less high. Another advantage is that these cranes
require
less maintenance due to the fact that there are fewer joints.All of the cranes in
the
Knuckle Boom line offer several key features that make them powerful solutions
for the marine work environment. The most notable of these features include: Fully
foldable cranes for safe and secure storage, when space is limited. Articulated
booms with the dexterity for accurate, safe, and efficient material handling.
Telescopic booms for extended bow free reach, even under heavy loads.
Drawing of Specifications Knuckle Boom Cargo Hose Industrial Crane Supplier
Technical Parameters
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting Moment
(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle °) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details(Specifications Knuckle Boom Cargo Hose Industrial Crane Supplier)
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Hydraulic Station
Certifications(Specifications Knuckle Boom Cargo Hose Industrial Crane Supplier)
About us
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
