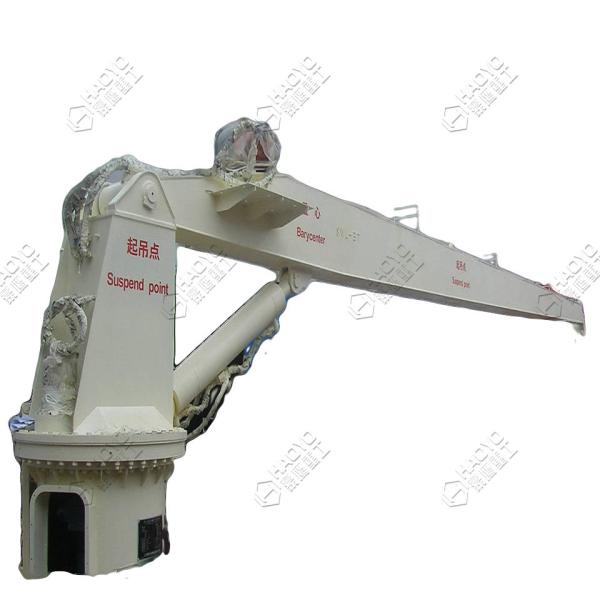

Fixed Components Marine Hydraulic Boom Offshore Cranes
Stiff bow free booms with the dexterity for accurate, safe, and
efficient material
handling.Stiff boom cranes are typically used in dock, on fixed
installations and
in harbor conditions.HAOYO stiff boom cranes are suitable equipped
on the deck
for bulk cargo ships or offshore with enough free space.These cranes can also
be further customized for use in these most demanding of work environments.
Speak to one of our sales associates for a solution fully customized to your needs.
HAOYO stiff boom cranes are suitable equipped on the deck for bulk cargo ships
or offshore with enough free space. The crane installed with lifting winches
Please provide following necessary information,so we can quote
right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane is for hose handling or normal cargo
4. The crane will be used on ship, offshore platform or fixed
platform (motor 380V
or 440V)
5. If you have any other special request for the crane, please
advise us
Drawing of Fixed Components Marine Hydraulic Boom Offshore Cranes
Technical Parameters
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting moment(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Dead Weight (kg) |
| HC200 | 6-16 | 3.5-0.9 | 144-210 | 270 | 885 | 2.7-3.2 |
| HC400 | 6-16 | 5.6-1.7 | 288-336 | 424 | 885 | 3.2-3.7 |
| HC600 | 6-20 | 10-2.3 | 460-600 | 737 | 1095 | 4.4-5.5 |
| HC 900 | 6-20 | 14.2-3.2 | 640-852 | 1039 | 1325 | 5.9-7.0 |
| HC1200 | 6-24 | 19-3.5 | 840-1140 | 1409 | 1490 | 7.8-10.2 |
| HC1500 | 7-24 | 20.3-4.6 | 1104-1421 | 1765 | 1490 | 9.2-11.3 |
| HC1800 | 7-24 | 25.6-5.4 | 1296-1792 | 2202 | 1770 | 11.4-14.1 |
| HC3000 | 21 | 12.5 | 2625 | 3750 | 1775 | 24.8 |
| HCK220 | 27,5 | 20,0 | 2200 | 4000 | 1800 | 15.0 |
| HCK300 | 30.0 | 25.0 | 3000 | 5000 | 2065 | 17.5 |
| HCK400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 20.0 |
| HCK500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 25.0 |
| HCK800 | 40.0 | 50.0 | 8000 | 11500 | 2271 | 45.0 |
More Products(Fixed Components Marine Hydraulic Boom Offshore Cranes)
Processing Flow(Fixed Components Marine Hydraulic Boom Offshore Cranes)
Certifications(Fixed Components Marine Hydraulic Boom Offshore Cranes)
Packaging&Delivery(Fixed Components Marine Hydraulic Boom Offshore Cranes)
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice
according
to your requirements.
