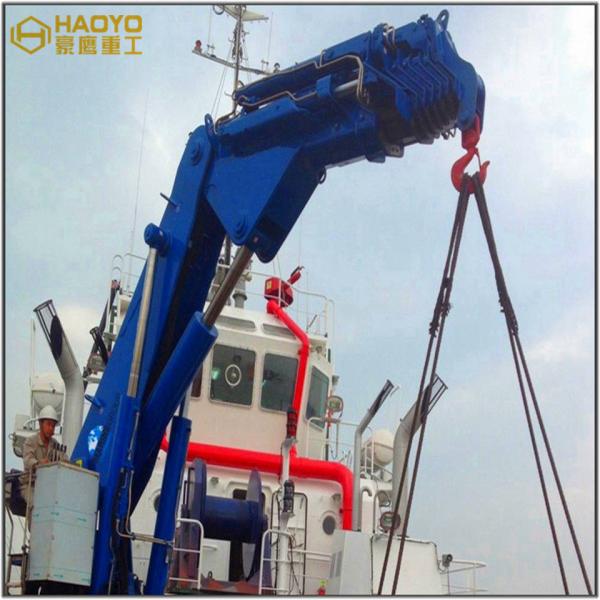

Hydraulic Workshop Knuckle Boom Cargo Hose Crane
Knuckle boom marine crane with enough strong structure can be
operated in the
most severe weather conditions. For the precision and reliability, operators
can move
with heavy duty. With the special knuckle boom structure, the marine crane leaves
so much free space on the deck.HAOYO knuckle boom marine cranes are
designed
to lift high loads with extended jib and provide the operator with great flexibility during
lifting operations.
Please provide following necessary information,so we can quote
right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane will be used on ship, offshore plantform or fixed
plantform (motor 380V
or 440V)
4. If you have any other special request for the crane, please
advise us
Drawing of Hydraulic Workshop Knuckle Boom Cargo Hose Crane
Technical Parameters of Hydraulic Workshop Knuckle Boom Cargo Hose Crane
| Crane Type | Outreach (m) | Lifting capacity (kg) | Lifting Moment
(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle °) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details(Hydraulic Workshop Knuckle Boom Cargo Hose Crane)
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Production Flow
Certifications(Hydraulic Workshop Knuckle Boom Cargo Hose Crane)
About us
Our Service
♦ HAOYO after Sales Service provides timely and efficient support,
both to our clients
and partners.
♦ Our Spare-Parts office, instead, deals with requests from
customers around the world,
arranging component shipment in the shortest possible time.
♦ Our HAOYO Spare-Parts staff also support retailers and customers
in choosing pieces
best suited to their needs.
