Hydraulic Foldable Shop Boom Provision Crane Manufacturers Sale
The foldable boom cranes are suitable when the deck space is
limited.Their design
combines maximum performances with flexible working operations.
These cranes are
handy and allow comfortable working operations in all operative
conditions. The full
foldable boom with structure can load and unload in strongly and
flexibly.The foldable
boom cranes have diverse applications including service cranes,
cargo handling cranes,
fishing and fishing cranes.

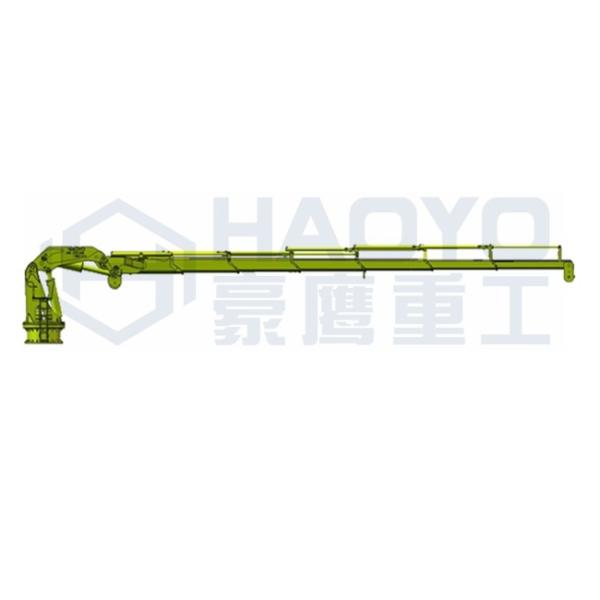

Drawing(Hydraulic Foldable Shop Boom Provision Crane Manufacturers Sale)
Technical Parameters
| MODEL | Outreach
(m) | Safety Load(kN) | Lifting Moment(kNm) | Total Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
| ECK 150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
| ECK 250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 3.7-4.3 |
| ECK 350 | 12.0-16.0 | 3.6-2.3 | 370-430 | 603 | 1095 | 5.3-6.3 |
| ECK 550 | 14.0-18.0 | 4.7-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
| ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
| ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
| ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
| ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
| ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
| ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
| ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
| ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
| ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
| ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
| ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
| ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
| ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
| ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |
Certifications
Accessories
About HAOYO
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
