Shanghai HAOYO Foldable Boom Marine Crane 1000 kg Made in china Marine Ship Deck Crane

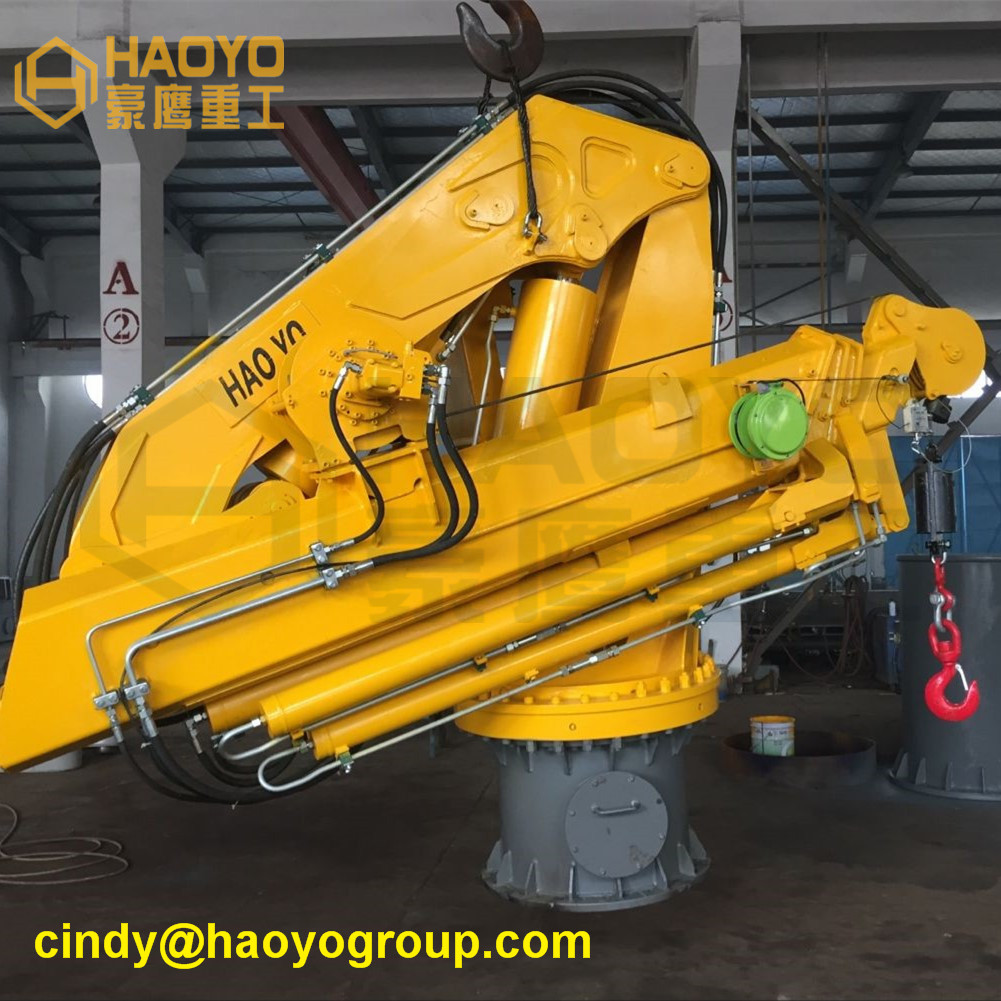

Shanghai HAOYO Foldable Boom Marine Crane 1000 kg Made in china

The foldable boom cranes are suitable when the deck space is limited.Their design
combines maximum performances with flexible working operations. These cranes
are handy and allow comfortable working operations in all operative conditions. The
full foldable boom with structure can load and unload in strongly and flexibly.The
foldable boom cranes have diverse applications including service cranes, cargo
handling cranes, fishing and fishing cranes.

Drawing

Technical Parameters

MODEL	Outreach (m)	Safety Load(kN)	Lifting Moment(kNm)	Total Moment (r/min)	Pedestal Diameter (mm)	Dead Weight (t)
ECK 150	8.0-12.0	2.1-1.1	132-168	241	885	2.8-3.2
ECK 250	10.0-14.0	2.9-1.8	242-290	381	885	3.7-4.3
ECK 350	12.0-16.0	3.6-2.3	370-430	603	1095	5.3-6.3
ECK 550	14.0-18.0	4.7-3.2	573-660	980	1325	7.8-9.2
ECK 750	14.0-18.0	6.1-4.2	749-855	1375	1490	11.5-12.8
ECK1150	16.0-20.0	7.3-5.2	1040-1160	1765	1490	12.7-14.0
ECK1450	16.0-20.0	9.0-6.4	1268-1440	2555	1770	19.2-23.0
ECK 220	27.5	30,0	2200	4000	1800	25.0
ECK 300	30.0	30.0	3000	5000	2065	27.5
ECK 400	32.0	30.0	4000	6300	2050	30.0
ECK 500	35.0	35.0	5000	8000	2240	35.0
ECK 800	37.0	50.0	8000	11500	2271	55.0
ECK1000	40.0	60.0	10000	14400	2536	70.0
ECK1200	43.0	80.0	12000	18000	2550	100.0
ECK1600	45.0	100.0	16000	34000	3166	150.0
ECK2000	50.0	125.0	20000	44000	3987	200.0
ECK2500	50.0	150.0	25000	50000	4000	220.0
ECK3000	50.0	200.0	30000	60000	4500	275.0

Certifications

Production Flow

About us

1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.

2.Price:We have our own factory,so we can control the cost & delivery time.

3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.

OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI
FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU
Web: www.haoyogroup.com
