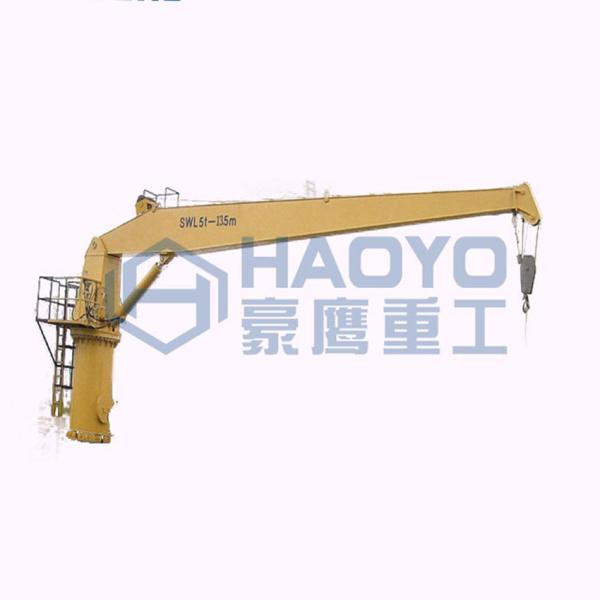

Fixed Boom Offshore Pedestal Marine Deck Crane
Stiff bow free booms with the dexterity for accurate, safe, and
efficient material
handling. Stiff boom cranes are typically used in dock, on fixed
installations and
in harbor conditions.HAOYO stiff boom cranes are suitable equipped
on the deck
for bulk cargo ships or offshore with enough free space.
Drawing of Fixed Boom Offshore Pedestal Marine Deck Crane
Technical Parameters of Fixed Boom Offshore Pedestal Marine Deck Crane
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting moment(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Dead Weight (kg) |
| HC200 | 6-16 | 3.5-0.9 | 144-210 | 270 | 885 | 2.7-3.2 |
| HC400 | 6-16 | 5.6-1.7 | 288-336 | 424 | 885 | 3.2-3.7 |
| HC600 | 6-20 | 10-2.3 | 460-600 | 737 | 1095 | 4.4-5.5 |
| HC 900 | 6-20 | 14.2-3.2 | 640-852 | 1039 | 1325 | 5.9-7.0 |
| HC1200 | 6-24 | 19-3.5 | 840-1140 | 1409 | 1490 | 7.8-10.2 |
| HC1500 | 7-24 | 20.3-4.6 | 1104-1421 | 1765 | 1490 | 9.2-11.3 |
| HC1800 | 7-24 | 25.6-5.4 | 1296-1792 | 2202 | 1770 | 11.4-14.1 |
| HC3000 | 21 | 12.5 | 2625 | 3750 | 1775 | 24.8 |
| HCK220 | 27,5 | 20,0 | 2200 | 4000 | 1800 | 15.0 |
| HCK300 | 30.0 | 25.0 | 3000 | 5000 | 2065 | 17.5 |
| HCK400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 20.0 |
| HCK500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 25.0 |
| HCK800 | 40.0 | 50.0 | 8000 | 11500 | 2271 | 45.0 |

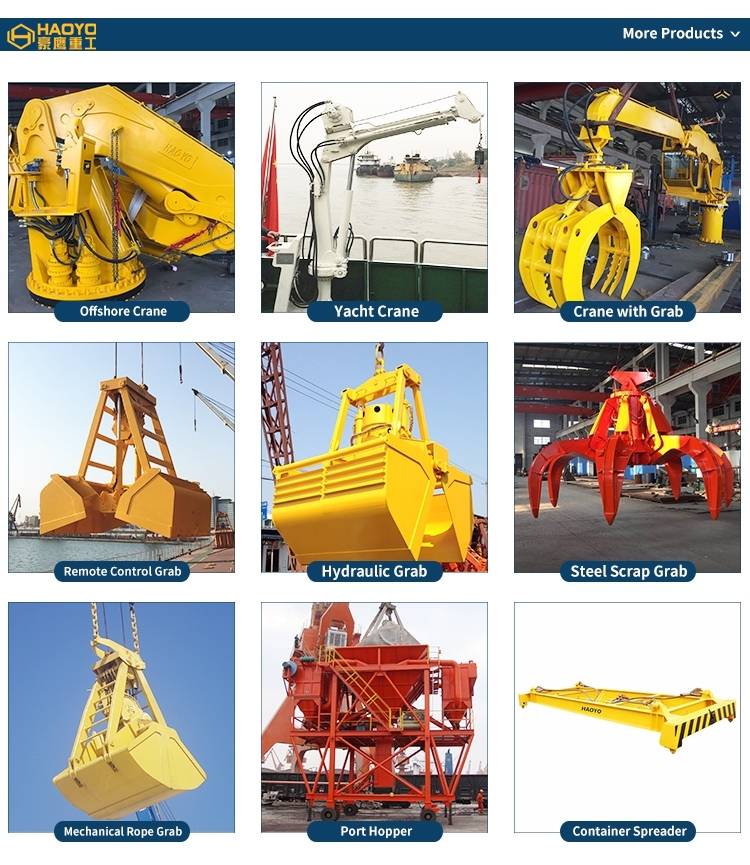

More Products
Processing Flow
Certifications
Packaging&Delivery
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice
according
to your requirements.
