Good Quality Offshore Pedestal Dock Cranes Marine Ship Deck Crane
for sale

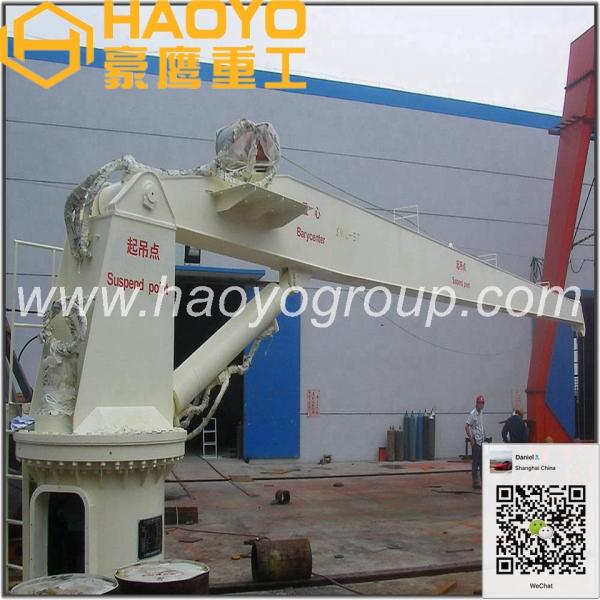

HAOYO stiff boom cranes are suitable equipped on the deck for bulk
cargo ships
or offshore with enough free space. The crane installed with lifting winches. As
lack
of hydraulic cylinder on the boom, the crane can’t extend and folded. But for its
simple structure, compare to the knuckle boom crane and telescopic crane, it’s
price and maintenance cost is the lowest.The cranes are available in the range
from 140–30000 kNm lifting moment and are supplied according to customer
requirements. The most notable features include: Stiff bow free
booms with the
dexterity for accurate, safe, and efficient material handling.Stiff boom
cranes are
typically used in dock, on fixed installations and in harbor
conditions.
Please provide following necessary information,so we can quote
right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane is for hose handling or normal cargo
4. The crane will be used on ship, offshore plantform or fixed
plantform (motor 380V
or 440V)
5. If you have any other special request for the crane, please
advise us
Drawing
Technical Parameters
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting Moment
(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle °) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Production Flow
Certifications(Good Quality Offshore Pedestal Dock Cranes Marine Ship Deck Crane
for sale)
About us (Good Quality Offshore Pedestal Dock Cranes Marine Ship Deck Crane
for sale)
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
