Manufacturer For Good Quality10 ton Telescopic Boom Marine Ship
Deck Crane.

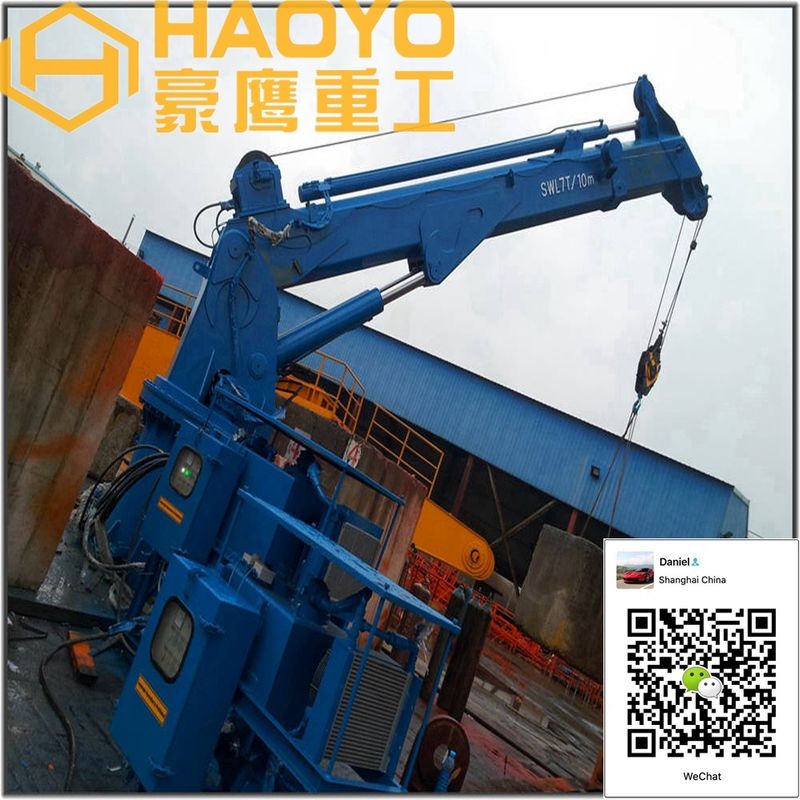

1.Telescopic Marine Crane is composed
ofbase,armframe,tower,hydraulicwinch,
telescopic oil cylinder, Amplitude oil cylinder, hydraulic rotary mechanism, operating
platform, hydraulic transmission parts, electric controlling part and etc.
2.The base is cylinder structure, can be welded on the deck, also
can connect with
deck by high strength bolts. Connection mode must to be marked.
3.Arm frame and tower are box structure. Hydraulic winch controls
the goods rising
and drop.Telescopic oil cylinder controls level the telescopic crane boom. Amplitude
oil cylinder controls goods correct hook-on point and landing point.
4. Swing mechanism for controlling crane turning right or left
turn. Operation platform
is used for operation and maintenance debugging. Hydraulic transmission parts for
the system to provide pressure oil; The electrical control system mainly control motor
stops,operation.
Drawing
Technical Parameters
| MODEL | Safety Load
(KN) | Max Outreach
(m) | Lifting Speed (m/min) | Slewing Speed
(r/min) | Luffing Time
(s) | Hoisting Height
(m) | Slewing Angle (°) | Permissible Heeling (transverse/
longitudinal) (°) | Power (kW) |
| 10 | 10 | 6~20 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 7.5 |
| 15 | 15 | 8~22 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 11 |
| 20 | 20 | 5~24 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 15 |
| 30 | 30 | 8~25 | 15 | 0.9 | 70 | 30 | 360° | 2° /5° | 22 |
| 50 | 50 | 12~25 | 15 | 0.75 | 80 | 30 | 360° | 2° /5° | 37 |
| 80 | 80 | 12~25 | 15 | 0.75 | 100 | 40 | 360° | 2° /5° | 55 |
| 100 | 100 | 12~25 | 15 | 0.75 | 110 | 40 | 360° | 2° /5° | 75 |
| 150 | 150 | 12~28 | 15 | 0.6 | 110 | 30 | 360° | 2° /5° | 90 |
| 200 | 200 | 16~30 | 15 | 0.6 | 120 | 35 | 270° | 2° /5° | 75*2 |
| 250 | 250 | 20~35 | 15 | 0.5 | 130 | 40 | 270° | 2° /5° | 90*2 |
| 300 | 300 | 35 | 15 | 0.4 | 140 | 40 | 270° | 2° /5° | 90*2 |
| 350 | 350 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 110*2 |
| 400 | 400 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 140*2 |
| 450 | 450 | 25~40 | 15 | 0.45 | 160 | 50 | 360° | 2° /5° | 140*2 |
| 500 | 500 | 20~40 | 15 | 0.45 | 170 | 50 | 360° | 2° /5° | 165*2 |
