3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane
HAOYO stiff boom cranes are suitable equipped on the deck for bulk
cargo ships or offshore
with enough free space. The crane installed with lifting winches. As
lack of hydraulic cylinder
on the boom, the crane can’t extend and folded. But for its simple structure,
compare to the
knuckle boom crane and telescopic crane, it’s price and maintenance cost is the lowest.
The cranes are available in the range from 140–30000 kNm lifting
moment and are supplied
according to customer requirements. The most notable features include: Stiff
bow free booms
with the dexterity for accurate, safe, and efficient material handling.Stiff boom
cranes are
typically used in dock, on fixed installations and in harbor
conditions.
Please provide following necessary information,so we can quote
right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane is for hose handling or normal cargo
4. The crane will be used on ship, offshore plantform or fixed
plantform (motor 380V or 440V)
5. If you have any other special request for the crane, please
advise us

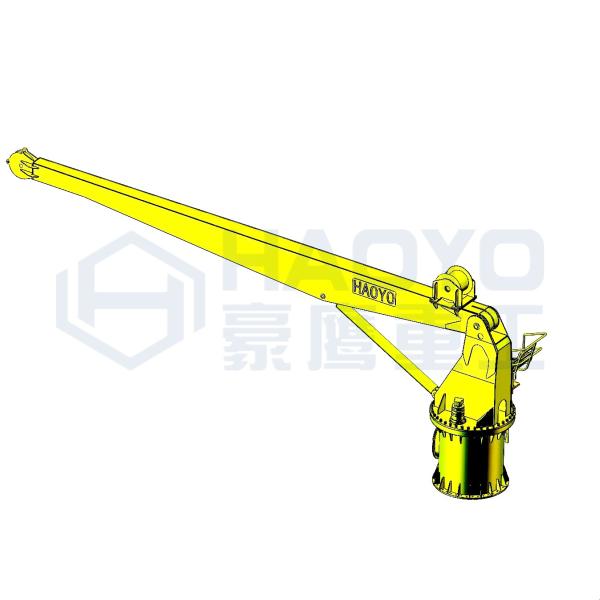

Drawing of 3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane
Technical Parameters
| Crane Type | Outreach (m) | Lifting capacity (kg) | Lifting Moment
(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details(3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane)
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Production Flow(3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane)
Certifications(3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane)
About us (3ton 5m Stiff Fixed Boom Marine Crane Marine Ship Deck Crane)
1.Professional:Sales & Design department is to create the right type for the
customer's unique
requirement. Work staffs in workshop are to ensure the strong
structure and good perform
in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to our clients
and partners.
