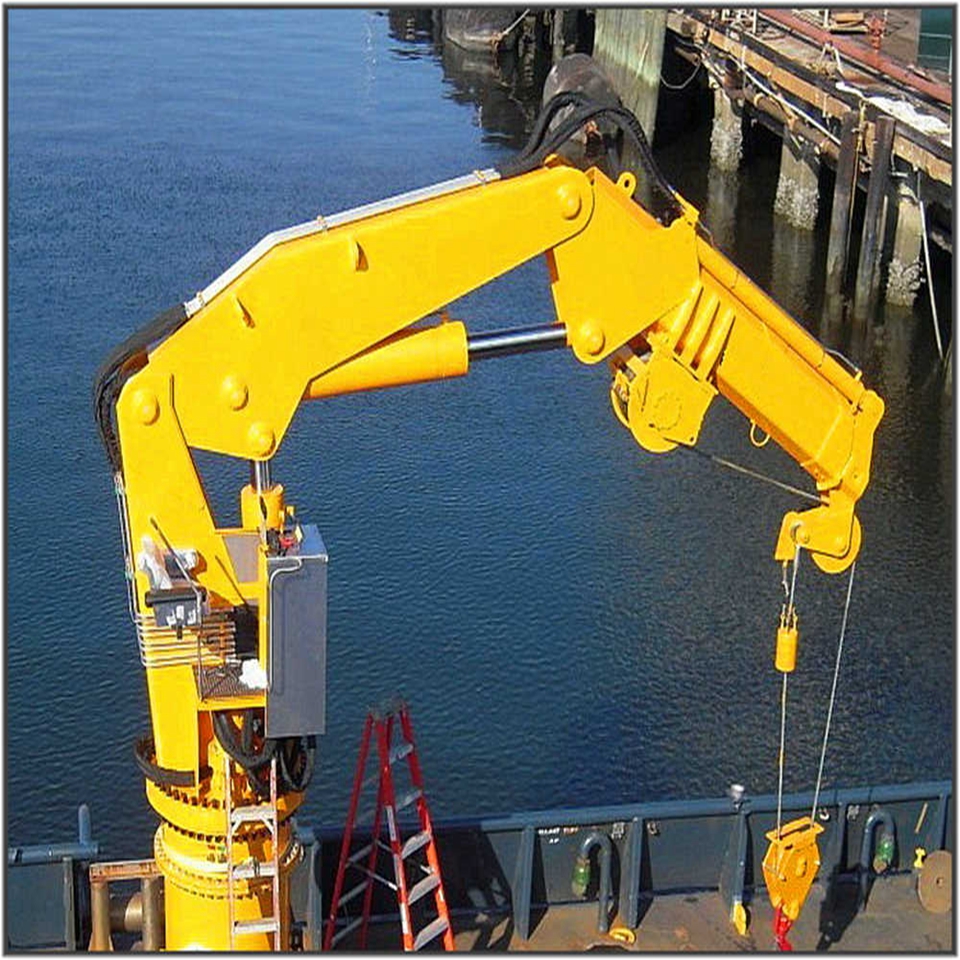

Knuckle Boom Boat Provision Ship Deck Crane on Ship
Knuckle boom marine crane with enough strong structure can be
operated in the
most severe weather conditions. For the precision and reliability,
operators can
move with heavy duty. With the special knuckle boom structure, the marine
crane
leaves so much free space on the deck.
HAOYO knuckle boom marine cranes are designed to lift high loads
with extended
jib and provide the operator with great flexibility during lifting
operations.
Please provide following necessary information,so we can quote
right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane will be used on ship, offshore plantform or fixed
plantform (motor 380V
or 440V)
4. If you have any other special request for the crane, please
advise us
Knuckle Boom Boat Provision Ship Deck Crane on Ship
Technical Parameters
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting Moment (kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle °) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details(Knuckle Boom Boat Provision Ship Deck Crane on Ship)
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Accessories(Knuckle Boom Boat Provision Ship Deck Crane on Ship)
Certifications(Knuckle Boom Boat Provision Ship Deck Crane on Ship)
About us (Knuckle Boom Boat Provision Ship Deck Crane on Ship)
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
