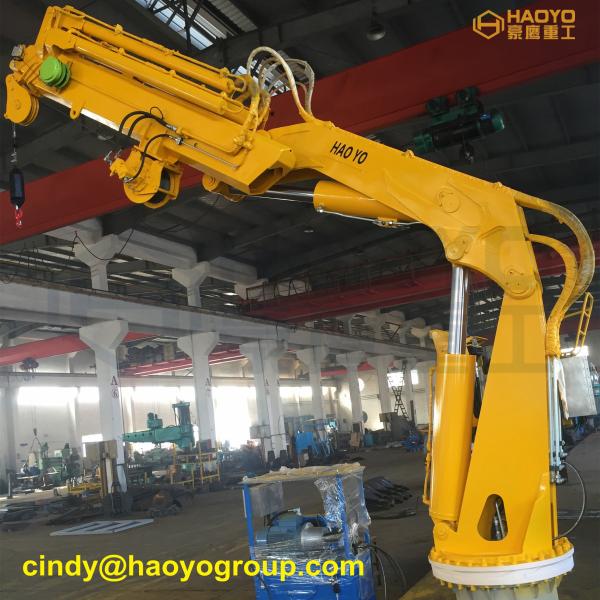

Foldable Jib Marine Lifting Boat Deck Cranes
Telescopic knuckle folding boom marine ship deck crane are suitable
when the deck
space is limited.Telescoping Boom hydraulic marine is designed for
general cargo
handling and service onboard ships and offshore units.The crane is most suitable
when the amount of space on deck is ample. These cranes offer a cost-effective
alternative to fixed booms. The crane is fixed where the lift is mostly done by the
winch. Cannot be hydraulically extended and retracted and have no knuckle function.
Drawing(Foldable Jib Marine Lifting Boat Deck Crane )
Technical Patameters
| MODEL | Outreach
(m) | Safety Load(kN) | Lifting Moment(kNm) | Total Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
| ECK 150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
| ECK 250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 3.7-4.3 |
| ECK 350 | 12.0-16.0 | 3.6-2.3 | 370-430 | 603 | 1095 | 5.3-6.3 |
| ECK 550 | 14.0-18.0 | 4.7-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
| ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
| ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
| ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
| ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
| ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
| ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
| ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
| ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
| ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
| ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
| ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
| ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
| ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
| ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |
