Product Description

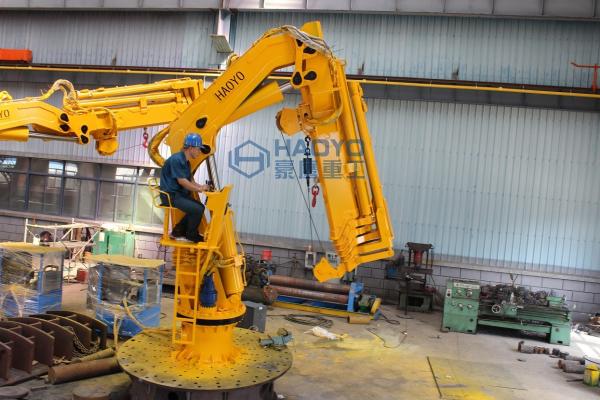

1 Knuckle boom cranes are suitable to operate at close distances.
2 This model combines force and strength, with a flexible outreach,
easy to handle.
3 They are designed and manufactured in conformity with the current
Marine Rules and they can be customized on request.
4 We can design as your requirements and suit your work condition.
Advantages and Feature
1.Variable speed, Soft starter, Slipring motors;
2.Wireless Radio Remote control;
3.Shrouded DSL system for power feeding;
4.Flameproof, Cabin Operated;
5. PLC automatic Control system;
6.High quality carbon steel Q345 or better
7. Port crane design adopt european technology;
8.All electrical applicance adopt china first-class brand,
Siemens,Schneider or according to your demands.
Application : Marine Provision cranes Service cranes Container and cargo
handling cranes
Offshore Deck cranes (shipboard) ship to Ship cranes Pipe handling
cranes Boat handling cranes
Wind Substation Cranes
As a direct manufacturer ,we are specialize in fixed boom crane
telescopic boom crane, knuckle boom crane, folding arm crane, and
other marine and port machine. We can give you a low price and our
experienced engineers can meet customer different requirement and
work condition.For after sale service we will give you 18 months
guarantee period with top technical support, and our experienced
engineers can service overseas.
Drawing
Technical Parameters
| MODEL | Outreach
(m) | Safety Load(kN) | Lifting Moment(kNm) | Total Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
| ECK 150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
| ECK 250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 3.7-4.3 |
| ECK 350 | 12.0-16.0 | 3.6-2.3 | 370-430 | 603 | 1095 | 5.3-6.3 |
| ECK 550 | 14.0-18.0 | 4.7-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
| ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
| ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
| ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
| ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
| ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
| ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
| ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
| ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
| ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
| ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
| ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
| ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
| ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
| ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |
Certifications
Production Flow
About us
1.Professional:Sales & Design department is to create the right type for the
customer's
unique requirement. Work staffs in workshop are to ensure the
strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient
support,both to
our clients and partners.
As a direct manufacturer we have a low price and many experienced
engineers , we will give you the best quotation and the best
model.If you want customization that's ok, our engineers will give
you the top technial support and design depend on the work
situation.Every parts we will use the best matreial to make the
crane performance perfect. If you wants more information pls
contact me.
